AP121 to OpenWRT In -and-Out Step-by-Step Procedure

AP121 to OpenWRT
In -and-Out
Step-by-Step Procedure

Those models use the same procedure: AP121, AP121U, Hornet, Hornet-UB

** Check Here to Download the firmware image **

Follow by below steps:

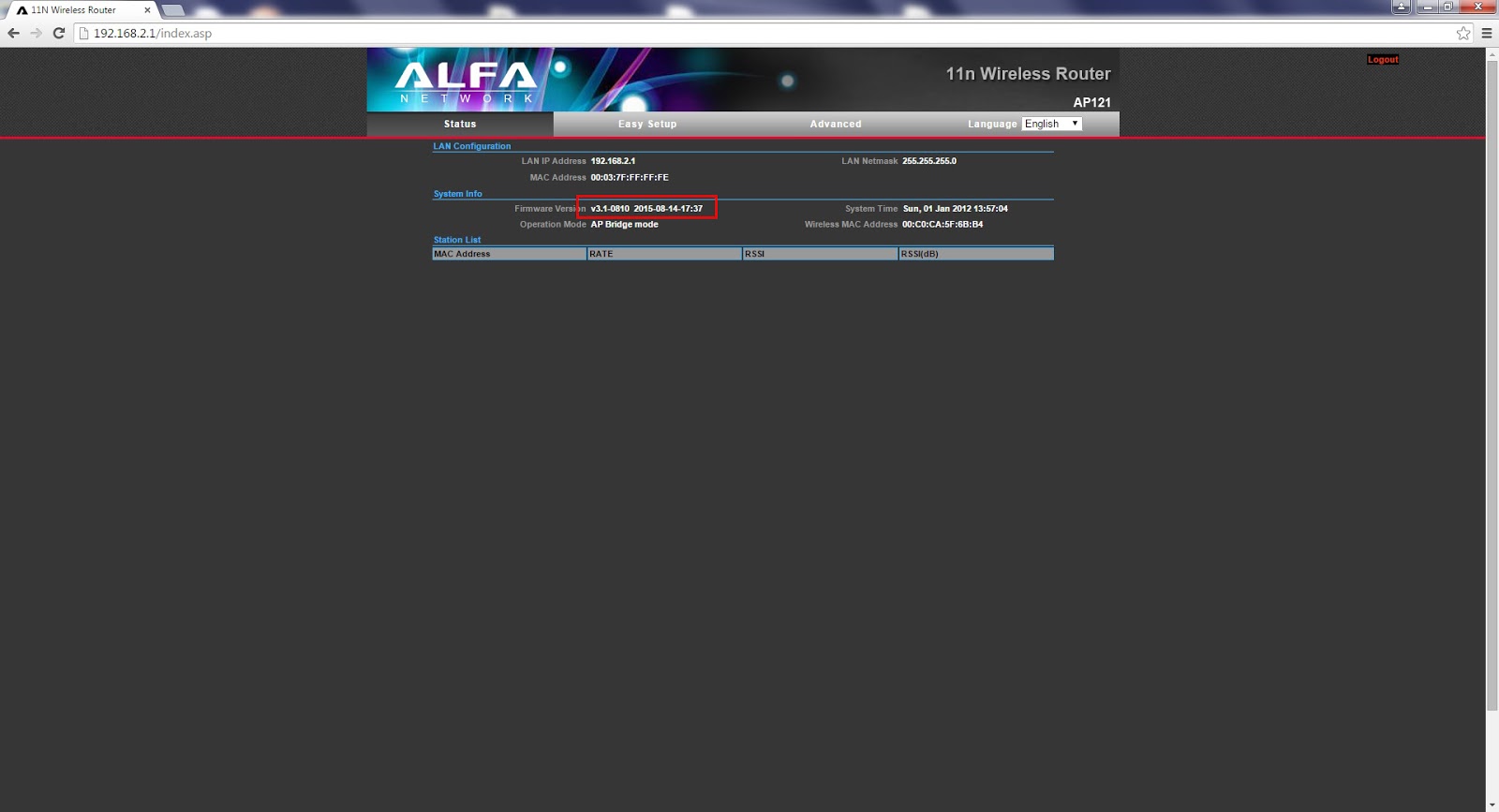

1. Make sure your device firmware version is v3.1-0810
  If not, upgrade to firmware version v3.1-0810

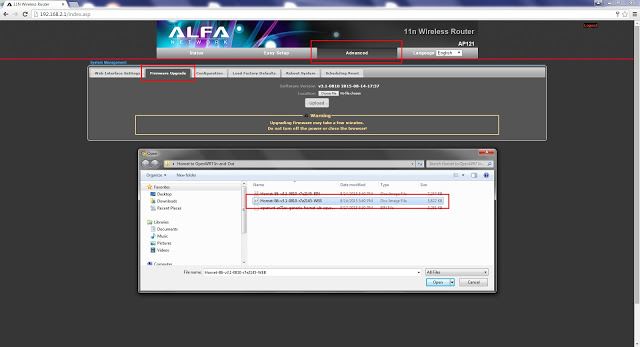

  •   Go to Advanced –> Management –> Firmware Upgrade –> choose the Hornet-B6-v3.1-0810-r7e2145-WEB to upgrade



2. With firmware version v3.1-0810 to OpenWRT firmware, just go to Firmware Upgrade page to choose openwrt-ar71xx-generic-hornet-ub-squashfs-factory.bin to upgrade

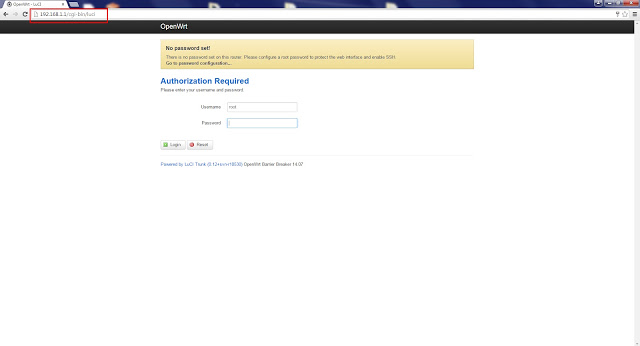

** Note: after upload OpenWRT firmware, the device IP change to 192.168.1.1 **

Load back from OpenWRT to Alfa version firmware

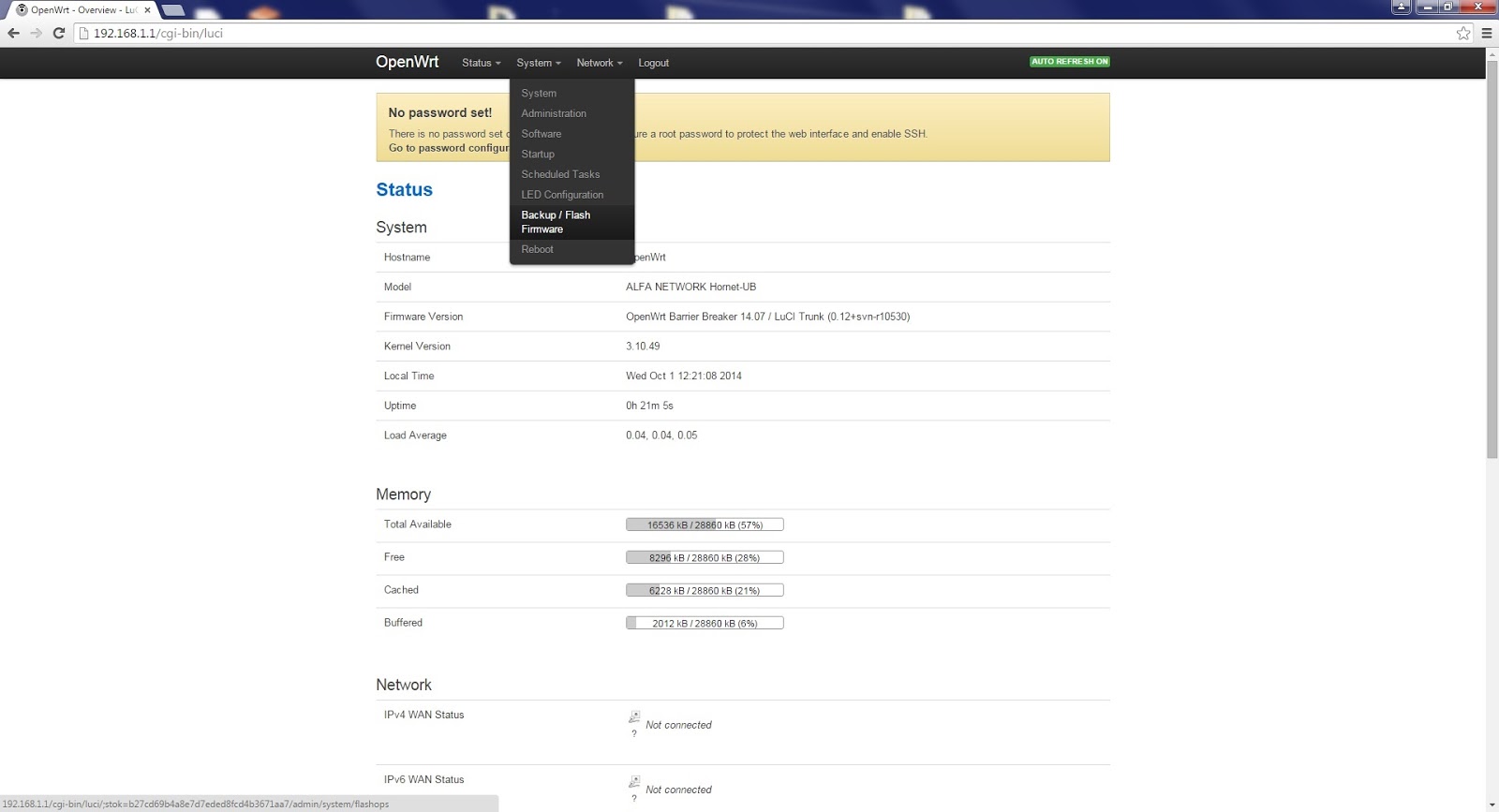

1. Go to System–> Backup/Flash Firmware

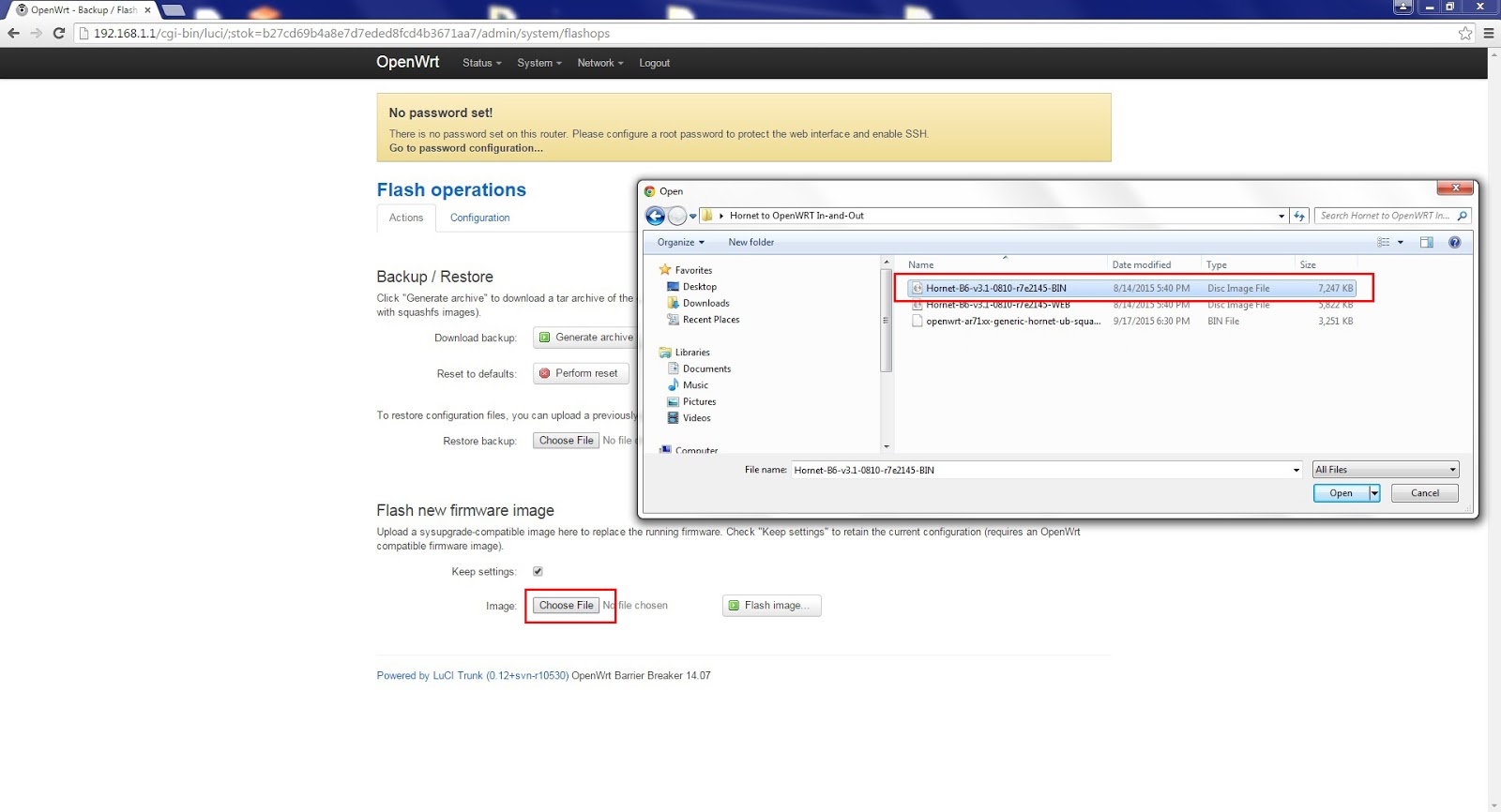

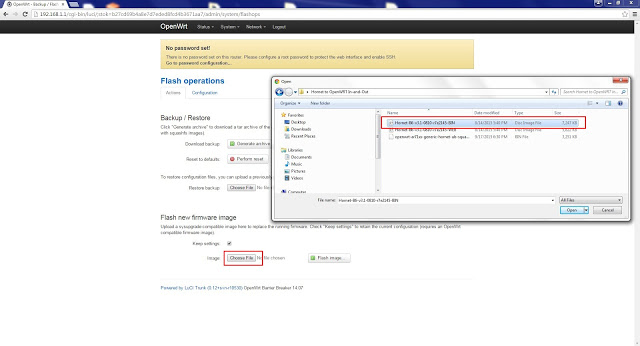

2. Select the image ” Hornet-B6-v3.1-0810-r7e2145-BIN ” to upload

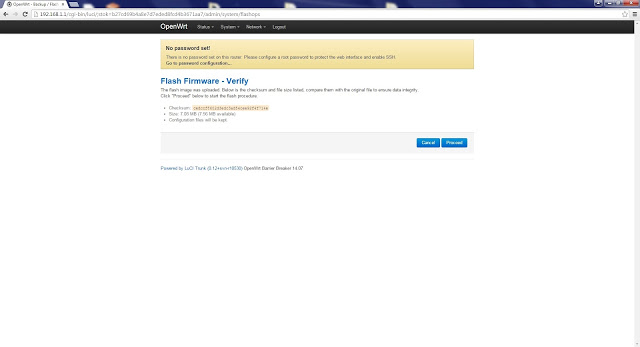

** Very Important: after click ” Proceed ” button, please wait 3 minutes to finish upload process **

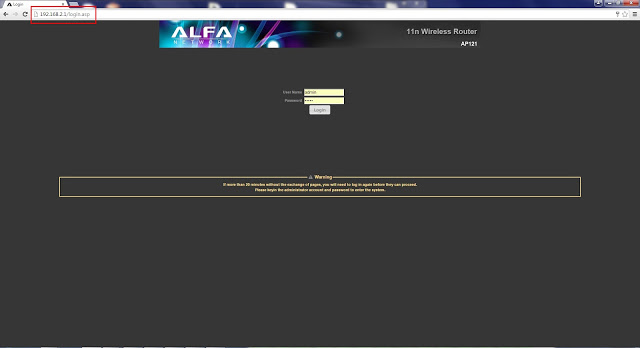

   With Alfa firmware, the device default IP is 192.168.2.1

Author: ALFA Network Inc.

ALFA Network Inc. https://www.alfa.com.tw

12 thoughts

  1. Is the same method and same file for ALFA TUBE2H valid ?What should I do if it is not valid ? For ALFA TUBE2HI want to return the original Firmware to OpenwrtWe are very pleased if you prepare a guideAlso this file missing !!! Please re-upload Hornet-B6-v3.1-0810-r7e2145-BIN

    Like

  2. My firmware update from v3.1-0810 to openwrt-ar71xx-generic-hornet-ub-squashfs-factory.bin went bad and now i can't access to router any way. Any recomendation? Thanks in advance

    Like

  3. Ok, I just found out the solution for my problem. Basically the firmware was correctly installed (apparently) but I had to connect to router through network cable, setup a manual address on my eth0 to 192.168.1.2 and now I can access to it.
