How to use WiFi CampPro2 / R36A Failover Recovery mode to upload firmware

How to use WiFi CampPro2 / R36A Failover Recovery mode to upload firmware

Before the process, failover recovery mode, please download proper firmware image file
For WiFi CampPro2 v1.10 firmware image: click DOWNLOAD

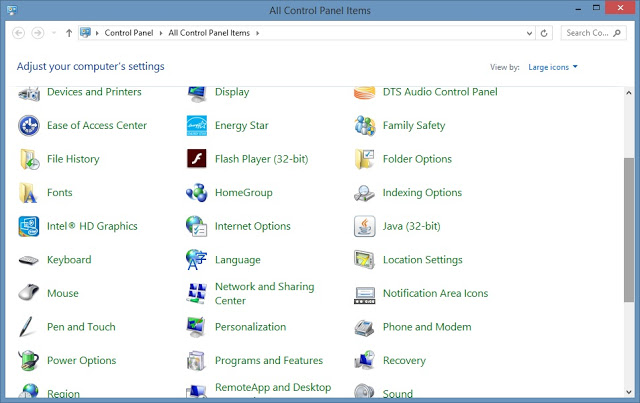

1. Go to Control panel
An easy way to find the control panel is In search bar to type-in “Control Panel”

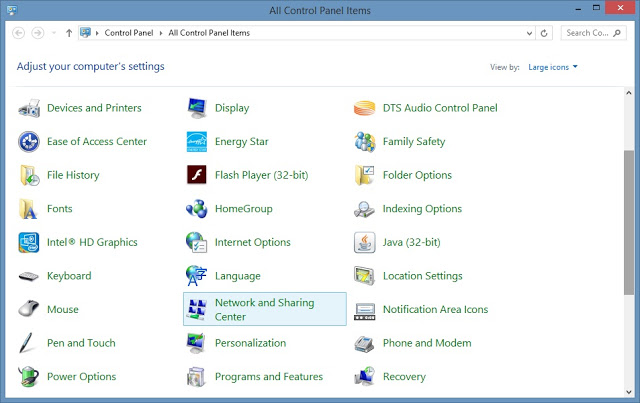

2. Find the Network and Sharing Center and click

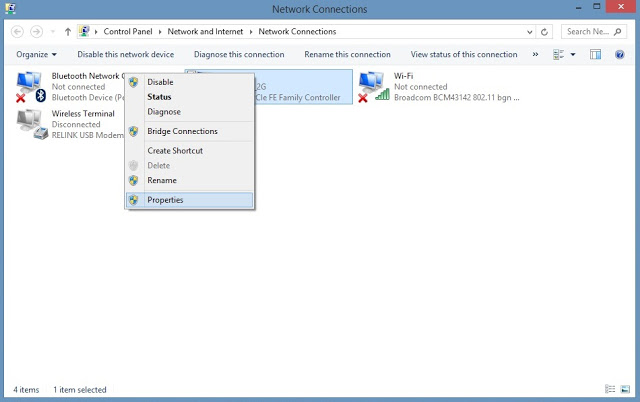

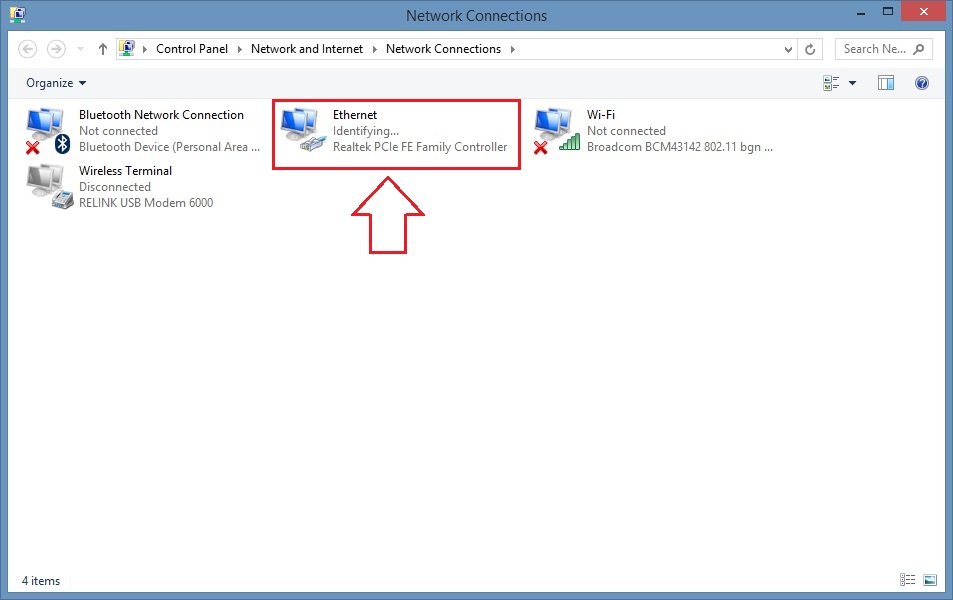

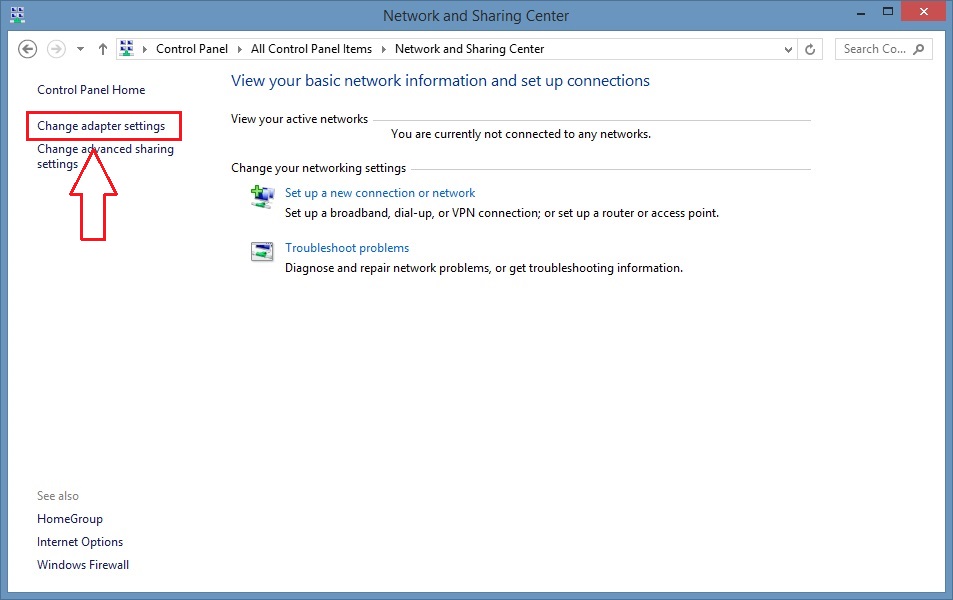

3. Click ”Change adapter settings”

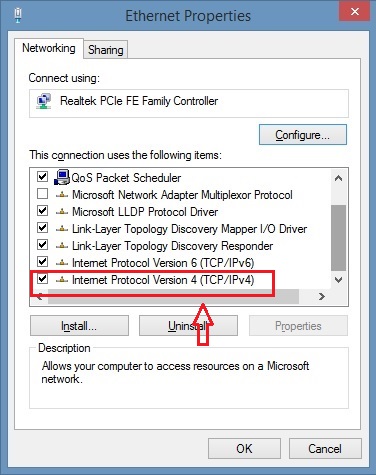

5. Select “Internet protocol version 4 (TCP/IPv4)”

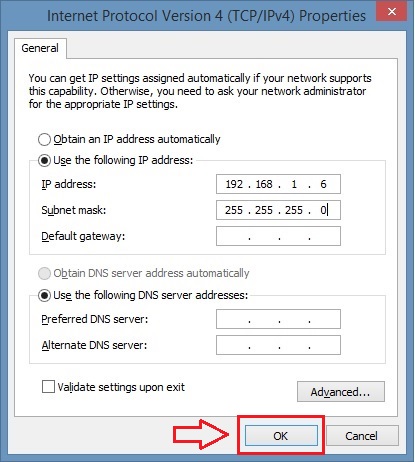

 6. Enter a IP address “ 192.168.1.6” and click “ Ok “ button

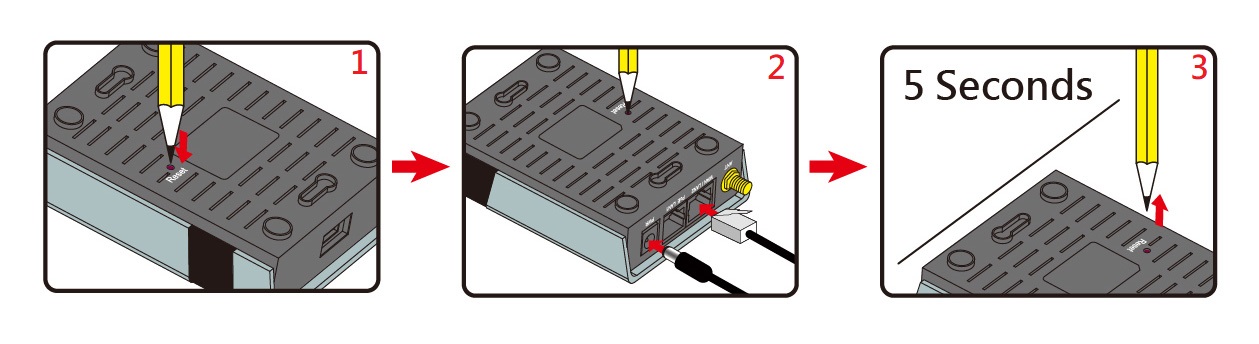

7. Push the reset button and plug in power source and ethernet cable and wait for 5 seconds to release the reset button

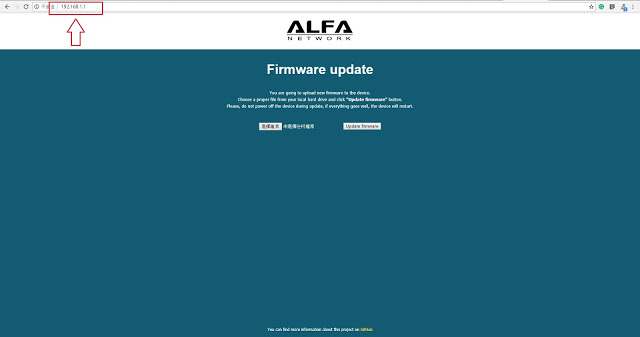

8. Open your browser and type-in 192.168.1.1 to go to firmware recover web page

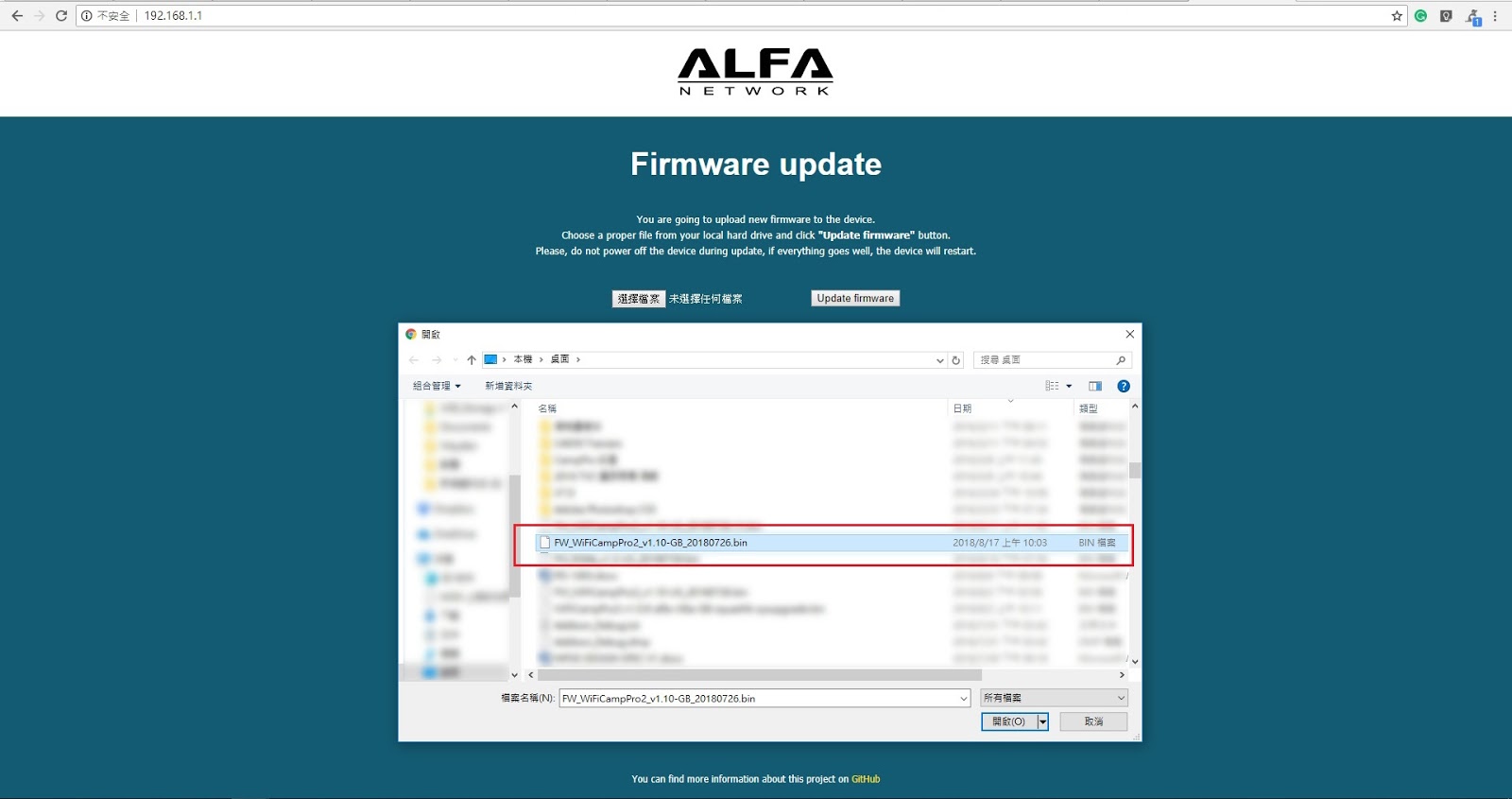

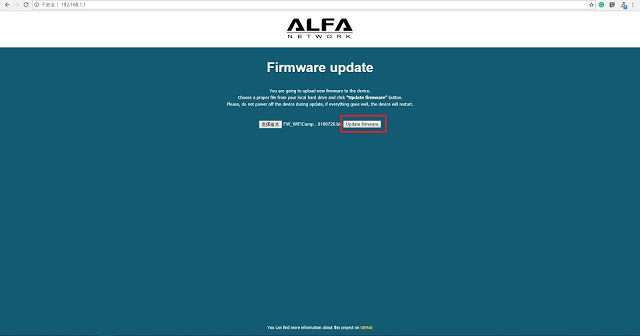

9. Use “Browse” button to choose the right firmware then click “Update firmware” button and wait about 3 minutes until device fully upload and reboot

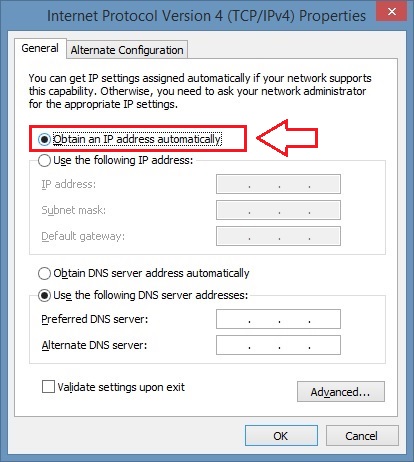

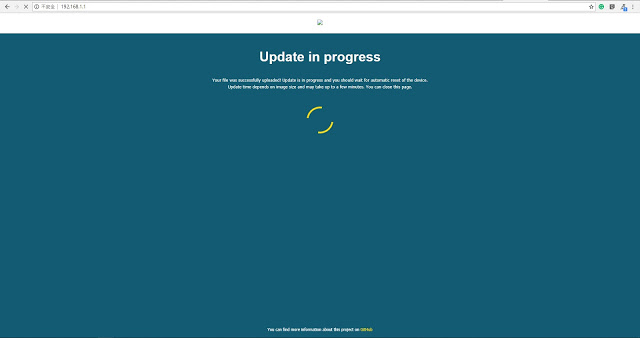

10. During Update In progress, go back to Ethernet adapter setting and choose “ Obtain an IP address automatically” then you should able to access your ALFA device

Author: ALFA Network Inc.

ALFA Network Inc. https://www.alfa.com.tw
