G2N-WDS

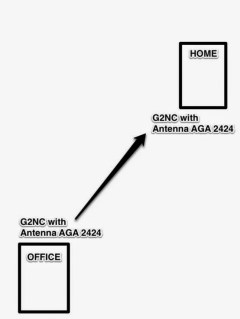

OFFICE SITE
To configure your G2N, please use Ethernet cable to connect your PC & G2N. Open your browser and enter http://192.168.2.1
Assign an IP address for your G2N (office unit) and don’t forget to turn off DHCP server if your office has DHCP service already.

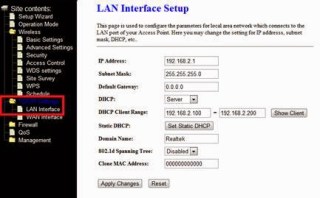

TCP/IP Settings -> LAN Interface (default IP address is 192.168.2.1)
Enable WDS (parent) feature on your G2N (office unit).

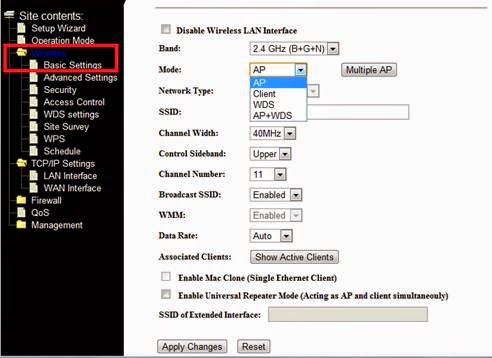

Wireless -> Basic Settings -> use drop down menu to select “AP + WDS” from Mode

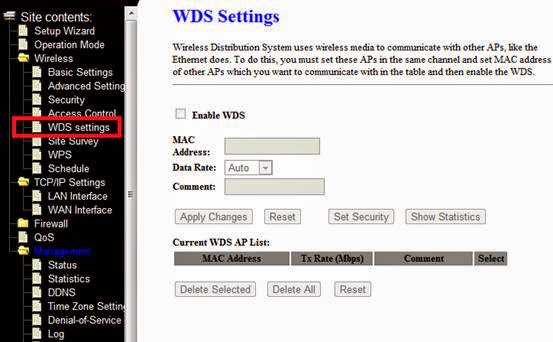

Then, go to Wireless -> WDS Setting

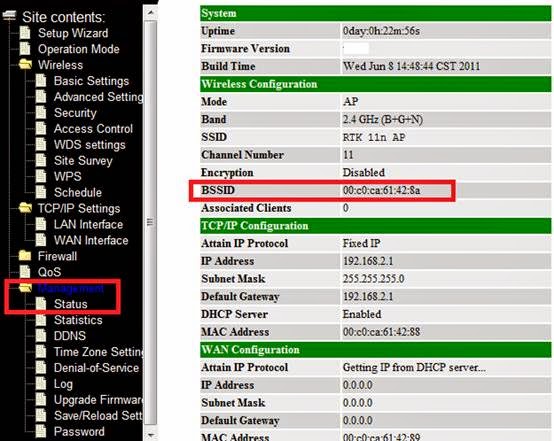

Check Enable WDS and enter MAC Address of your G2N Home (remote) unit. Please make sure you have entered the MAC address from BSSID box from Wireless Configuration on the Status page as shown in below
.
… to find the MAC address for WDS feature …


HOME SITE
To configure your G2N, please use Ethernet cable to connect your PC & G2N. Open your browser and enter http://192.168.2.1
Assign an IP address for your G2N (home unit) and don’t forget to turn off DHCP server if your office has DHCP service already.
TCP/IP Settings -> LAN Interface (default IP address is 192.168.2.1)
Enable WDS (parent) feature on your G2N (office unit).
Wireless -> Basic Settings -> use drop down menu to select “WDS” from Mode

Then, go to Wireless -> WDS Setting
Check Enable WDS and enter MAC Address of your G2N Office (remote) unit. Please make sure you have entered the MAC address from BSSID box from Wireless Configuration on the Status page as shown in below.
… to find the MAC address for WDS feature …


Author: ALFA Network Inc.

ALFA Network Inc. https://www.alfa.com.tw
