VLAN Setting

VLAN Setting

Apply Model: N2, N2C, N2s, N5, N5C and Tube2H
Note: VLAN only work in WDS mode

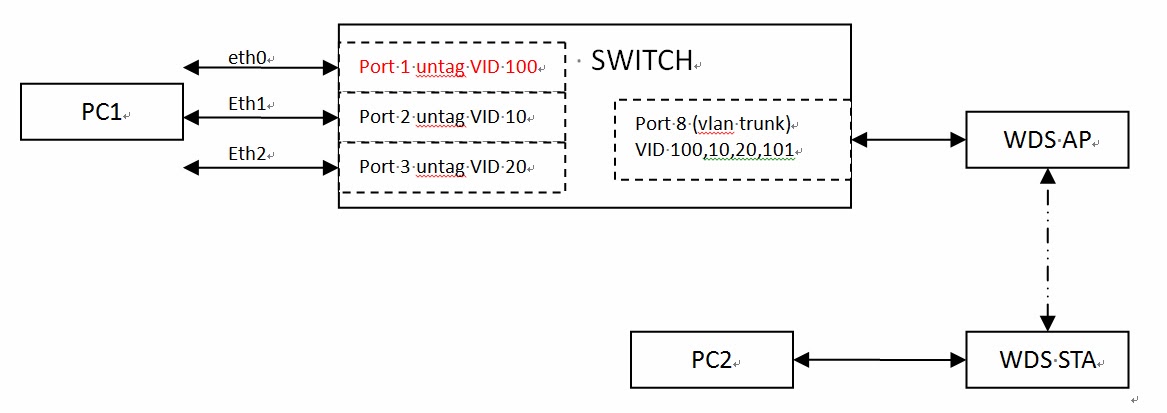

SWITCH:
        Port1               Management VLAN 100
        Port2               untagged VLAN 10
        Port3               untagged VLAN 20
        Port8               VLAN trunk, tagged VID 100,10,20
PC1:
        OS                    Windows XP
        Ethernet          1.onboard(eth0): 192.168.100.1, connect to port1
2.USB2ETH(eth1): 192.168.10.1, connect to port2
3.USB2ETH(eth2): 192.168.20.1, connect to port3
PC2:
        OS                    Linux(Ubuntu 12.04)
        Ethernet        use vconfig to create vlan interfaces eth0.10 and eth0.20
1. eth0.10: 192.168.10.2
                                2. eth0.20: 192.168.20.2

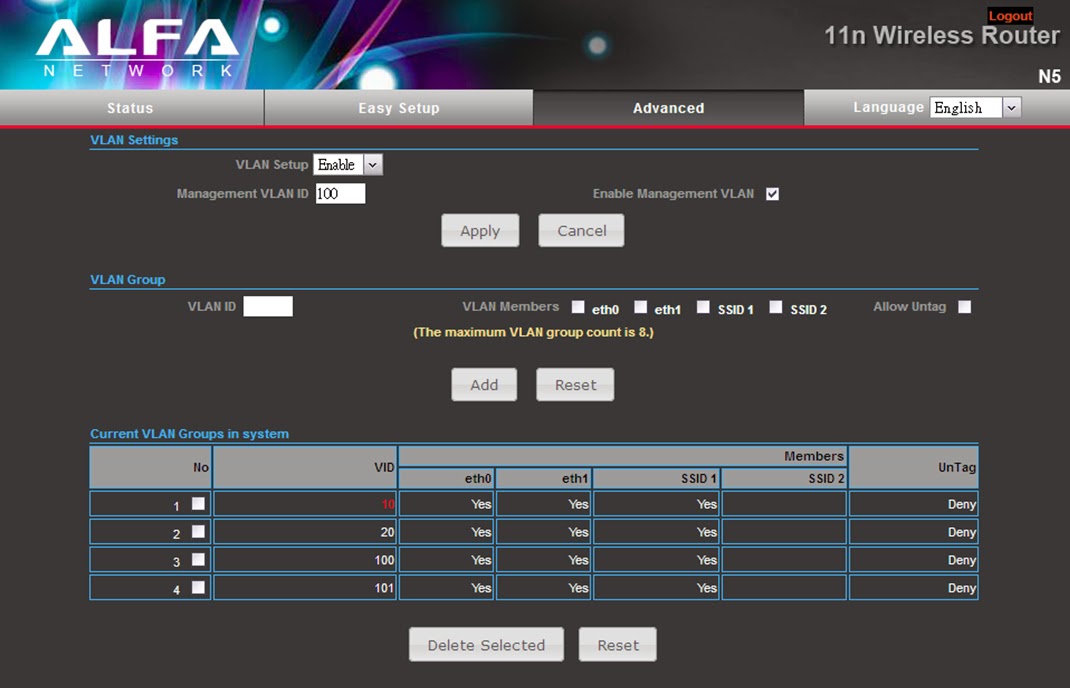

WDS AP: (N5 board)
        Mode               AP bridge mode
        IP address        192.168.100.51
        VLAN               enable Management VLAN and VID is 100
        VLAN group     add 3 VLAN ID 100, 10 ,20, 101 on eth0, eth1 and SSID1
WDS STA: (N5 board)
        Mode               client bridge and WDS enabled
        IP address        192.168.100.52
        VLAN               enable Management VLAN and VID is 100
        VLAN group     add 3 VLAN ID 100, 10 , 20, 101 on eth0, eth1 and SSID1

WPS AP
192.168.100.51















WDS STA
192.168.100.52

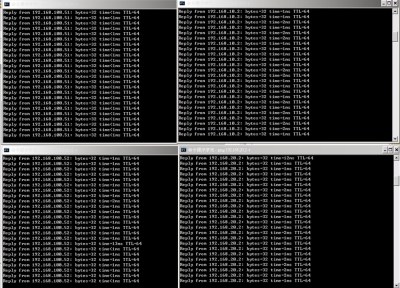

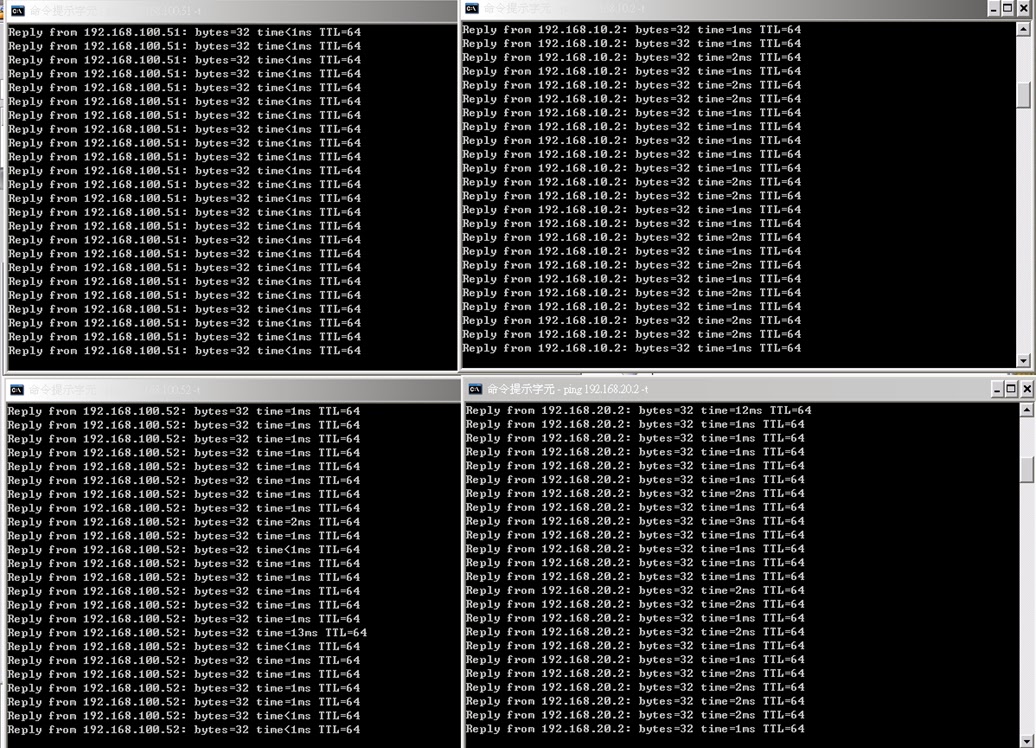

Ping from PC1 to WDS AP, WDS STA, PC2’s VID 10 and PC2’s VID 20


Author: ALFA Network Inc.

ALFA Network Inc. https://www.alfa.com.tw
