R36 Firmware Migration

Preparation,
Any interruption during firmware migration will cause you permanent damage to the device. Please make sure there is no power outage issue while migrating the firmware and for the best upgrade experience please using Internet Explorer to migrate the firmware.


Summary,
1.      Verify host machine is physically connected to R36 device.
2.      Configure host system for static IP on the 192.168.2.x subnet.
3.      From a web browser access 192.168.2.1
4.      When login window appears enter “admin” in both the username & password field.
5.      Click on Advanced tag then press Browse on the Firmware Upgrade to locate your firmware image.
6.      Press Upload after firmware is located
7.      Repeat above procedure #1 ~ #4 after system is back online from rebooting
8.      Click on Advanced tag then press Load Default and restart R36 device

Step by step with picture,

From a web browser access 192.168.2.1 (default Configuration IP address for R36.)

Internet Explorer is recommend

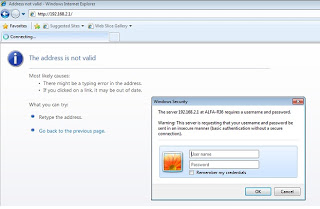

Enter the User ID & Password on the pop up authentication screen.

The default
User ID is admin
Password is admin


Click on the Advanced tag and click Browse to search for your firmware image.
Click the Import bottom to upload the image into R36.

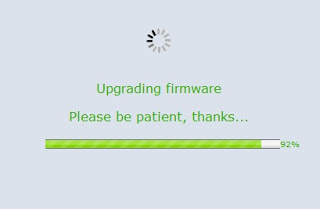

R36 will reboot itself automatically after image is uploaded.
Open your Internet browser and enter http://192.168.2.1 into the URL field, Internet Explorer is recommend

Enter the User ID & Password on the pop up authentication screen.

The default
User ID is admin
Password is admin

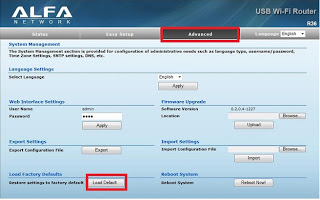

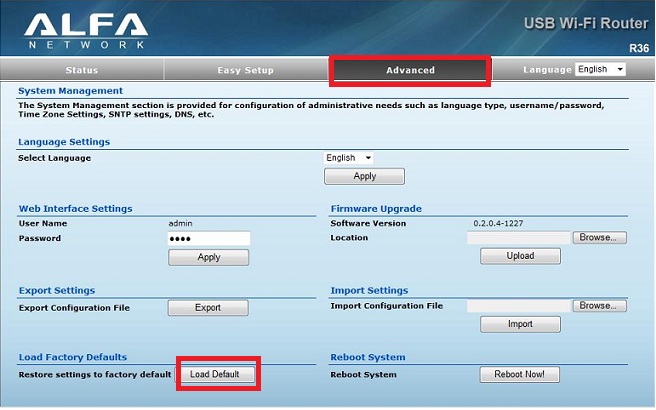

Click on the Advanced tag and click Load Default to clean up any residual setting.


Author: ALFA Network Inc.

ALFA Network Inc. https://www.alfa.com.tw

35 thoughts

  1. i'm in trouble with my alfa R36. After a wrong firmware upgrade, r36 stopped to work and tryed to restore firmware via tftp on serial shell. Unfortunately during the firmware restoration power as gone for a second and r36 u-boot stopped to work. No more booting… so now i need to flash via jtag the bootloader and the firmware. Can you provide me info about locating right jtag pins near ralink cpu ?Please help me!

    Like

  2. Hi Alfa, I'm confused about why 1.2.0.7b6, which SOUNDS like Beta 6, is available on your web site, but not 1.2.0.7.1.2.0.8 is available, but doesn't say on the website that it is compatible with the AWUS036H.Is 1.2.0.7b6 a beta, and should I stay with 1.2.0.7? Thanks a lot!

    Like

  3. Upgraded my R36 to firmware 1.2.0.8 and connected to AWUS036NHR. Connection was successful. However, when I specify the Primary and Secondary DNS Server. I cannot browse to interent anymore. Kindly fix the bug ASAP.

    Like

  4. I upgraded my Alfa R36 firmware to 1.3.0.0 and connected it to my new AWUS036NHR. I did \”Easy Setup\” and chose \”USB wireless adapter,\” but when I did \”Site survey\” to show all local wifi AP's, the list was blank. (When I scan with the old 1.2.0.7 firmware installed in my R36 and connected to my old AWUS036H, there are several AP's visible, and I can connect to them with good signal quality.) Any idea how I can get the R36 + AWUS036NHR to see them? Thank you for any advice!

    Like

  5. Could you provide instructions how to unbrick R36?Firmware migration was failed. Ping 192.168.2.1 doesn't work.

    Like

  6. hi alfa, i have i trouble , while iam starting the installation i open the internet explorer and then i put 192.168.2.1 . But he cant connect to this website. What i have to do ?

    Like

  7. I am also havinga problem with unbricking..after I have tried to update sotware over wifi there is no ping to 192.168.2.1 and cannot connect with hyper terminal over ttl cable…

    Like

  8. R36 does not work with NHV, even though I updated and tried using a USB y cable from NHV to r36 and to 2.0A power. Tried the r36 with a 036h and worked fine when downgraded firmware. Tried the NHV on computer with drivers worked flawlesly.Tried USB y cable to computer and power worked fine.There seems to be a problem with the firmware please fix Alfa.

    Like

  9. R36 does not work with NHV, even though I updated and tried using a USB y cable from NHV to r36 and to 2.0A power. Tried the r36 with a 036h and worked fine when downgraded firmware. Tried the NHV on computer with drivers worked flawlesly.Tried USB y cable to computer and power worked fine.There seems to be a problem with the firmware please fix Alfa.

    Like

  10. R36 does not work with NHV, even though I updated and tried using a USB y cable from NHV to r36 and to 2.0A power. Tried the r36 with a 036h and worked fine when downgraded firmware. Tried the NHV on computer with drivers worked flawlesly.Tried USB y cable to computer and power worked fine.There seems to be a problem with the firmware please fix Alfa.

    Like

  11. In conjunction AWUS036NHV and R36 are not connected to the router TP-LINK. Tried to connect to TP-LINK WDR4300 and TL-WN722N – in SoftAP mode. AWUS036NHV without using R36 is connected well. In conjunction AWUS036NHV and R36 managed to only connect to the router company ZyXEL Keenetic.

    Like

  12. hi alfa.. why we customers r36 got same issue that firmware is going down.. expired date timer 2015 or need buy new again.. or this is made china branded.. please alfa how fix solution very simple.. make r36 goon working by the great product alfa made in taiwan.. i love people taiwan..

    Like
